AMT Optical Bonding Technology

18/03/2022

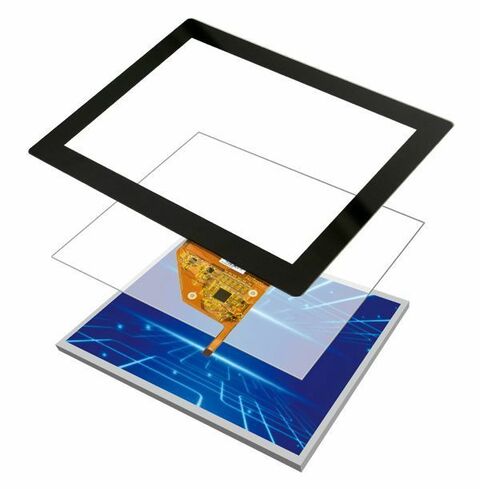

Our optical bonding uses our own Lucent Gel solid optically clear adhesive (SOCA). The base material is silicone, which has excellent weather resistance, yellowing resistance, UV resistance, and impact resistance. It can improve the reliability of industrial and medical displays, and meet a wide range of application requirements such as outdoor, marine, vehicle...etc. Optical bonding can completely laminate the touch panel and the LCD panel so that there is no air gap between the touch panel and the LCD. This can reduce parallax, decrease the reflection of external light sources, and improve the penetration rate of the backlight. These all contribute to an even better optical solution for LCD monitors!

AMT optically bonded LCD sizes are as follows:

LCD panel with metal frame: ≤ 27”
LCD panel without metal frame: ≤ 15.6”
Open Cell LCD panel: ≤ 27”

AMT supports all types of bonding:

Touch panel, Cover glass, Plastic housing
Bezel LCD, Cell Tape LCD, Open Cell, OLED, EPD

Main Features

Uses our own Lucent Gel solid optically clear adhesive (SOCA)
SOCA has no curing process and is not prone to stress Mura
No curing process required, no stress Mura
Fixture & Vacuum lamination technology
Low bonding and defoaming pressure. Suitable for displays that are not resistant to high pressure (such as OLED, EPD, Open Cell).
Suitable for 3D (lamination surface 2D, appearance 3D) or plastic parts lamination.
Multi-fixture lamination
