All you need to connect IIoT Layer 2 managed DIN-Rail switches

09/09/2022

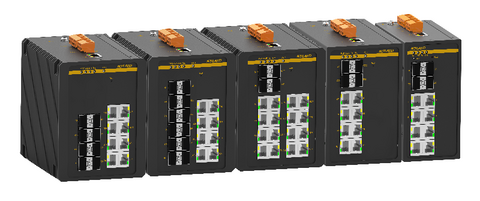

SICOM3000A is Layer 2 DIN-Rail Managed Industrial Ethernet Switch. It provides a rich product port portfolio, 6/8/10/12/16/18/20 ports, 100/1000M SFP port, 12/24/48/110/220V power input. SICOM3000A supports DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP, VLAN, multicast, QoS, SSH and many other Layer 2 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. It supports IEEE1588 PTPV2, Automatic Configuration Backup and Restore, DDM(SFP port), PROFINET (-PN Model), EtherNet/IP and Modbus/TCP protocols. SICOM3000A is especially designed for harsh environments with wide operating temperature range, EMC level 3, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, and can be deployed in Factory automation, Transportation, Oil & gas, wind power, distribution network automation and many other industrial applications.

Main Features

  • Supports 100Base-X, 1000Base-X SFP ports
  • Supports Redundancy protocols: DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP
  • Supports Network Security: HTTPS/SSL, SSH, TACACS+, IEEE802.1X, Radius, User Classification, MAC address binding with switch ports
  • Supports CLI, Telnet, WEB management methods, Kyvision centralized management based on SNMPv1/v2c/v3
  • Supports Automatic Configuration Backup and Restore
  • Supports Hardware-based IEEE1588 PTPv2 (BC, P2P TC, E2E TC clock modes, synchronization precision ±100 ns)
  • Supports PROFINET (-PN Model), EtherNet/IP and Modbus/TCP protocolsSupports DDM(SFP port)
  • Supports IP40 protection
  • Complies with IEC61850-3 and IEEE1613
  • CE, FCC, CB, EN50121-4, UL61010, Class I Div 2, IECEx, ATEX, WEEE certificates
Documents Tech question
