The power of Linux. The simplicity of a MCU

14/01/2022

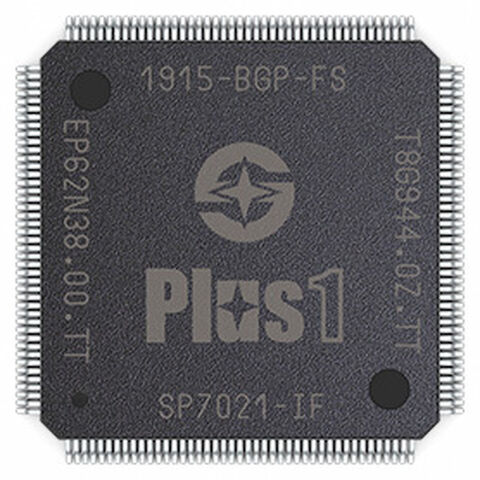

The Plus1 is a revolutionary SoC that has the power of a Linux-grade chip and the integration simplicity of a microcontroller.

The Plus1 takes all the sophisticated elements typically found in modern industrial-grade embedded Linux chips, adds a plethora of features targeting IoT and industrial control applications, and delivers the resulting design in a simple microcontroller-like package that needs few external components, simplifies the schematic diagram, and reduces the PCB complexity.

LTPP3(G2) Board can be used as an evaluation platform for the Plus1 CPU to determine whether the chip is viable for your project's needs.

Main Features

  • Easy-to-use LQFP package
  • Quad-core 1GHz Cortex-A7 CPU, plus A926 and 8051 cores
  • Single 3.3V power*
  • Integrated 128MB or 512MB DDR3 DRAM
  • Eight 8-bit 5V-tolerant I/O ports, plus one high-current port
  • Flexible Peripheral Multiplexing (PinMux)
  • Dual PinMuxable Ethernet MACs
  • Four PinMuxable Enhanced UARTs, plus one console UART
  • Industrial operating temperature range: -40°C to 85°C
  • Low EMI simplifies certification
  • Modern, Yocto-based Linux distribution
  • Ten-year supply guarantee
Documents Tech question
Tibbo plus1 cpu

The power of Linux. The simplicity of a MCU

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 23 E mobility

    E-Mobility

  • 17 Home Building Automation

    Home & Building Automation

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 2 Energy Utilities

    Energy & Utilities

Technologies

  • Shutterstock 1632356350

    Microcontroller, microprocessors & memory ICs

Tibbo Technology

Tibbo Technology focuses on designing, manufacturing, and marketing programmable IoT modules, boards, and controllers for the Internet of Things (IoT), Industrial Internet of Things (IIoT), and automation applications.

Read more
Tibbo logo main

Documents

  • Tibbo Plus 1 story Hardware specs
