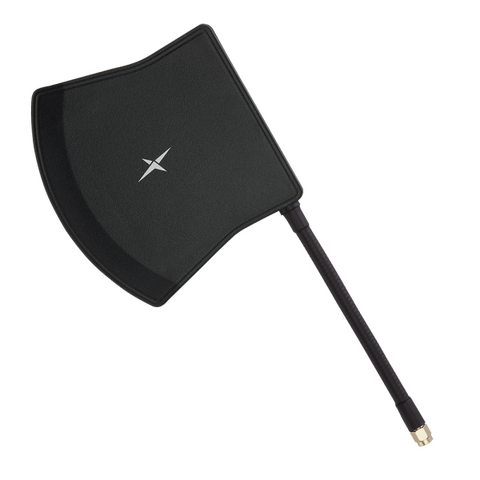

868/915MHz Directional Terminal Mount Antenna with Flexible Gooseneck

15/10/2021

The TS.89 Sighunter is a mechanically robust ISM / LoRa / SigFox antenna designed to be directly mounted onto a device via the flexible gooseneck and SMA(M) connector. The adjustable gooseneck cable allows for optimum positioning of the antenna in relation to the device and receive signal. The Sighunter has been designed to operate at either 868MHz or 915MHz frequencies for a fully global LoRa solution. The antenna has greater than 80% efficiency and 3.5dBi peak gain at 868MHz 80% efficiency and 2.7dBi peak gain at ISM 915MHz.

Directional radiation patterns over low angles provide focussed gain in one direction, meaning that it is especially suitable for longer range, applications like mesh networks or remote monitoring. When using this antenna, it should be directed towards the target base station or receiver, the Sighunter allows for this with its’ easily adjustable gooseneck and the gain from other directions is reduced ensuring that interference is minimised.

Main Features

  • Mechanically robust for indoor/outdoor applications
  • Direct SMA Connector Mount
  • Directional Antenna
  • Dimensions: 108 x 118 x 12mm
  • Connector: SMA Male
  • Gooseneck length: 127mm
  • RoHS & REACH Compliant
Documents Tech question
Taoglas TS894113 antenna

868/915MHz Directional Terminal Mount Antenna with Flexible Gooseneck

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 17 Home Building Automation

    Home & Building Automation

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 9 Remote Monitoring

    Remote Monitoring

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 1226404321

    Antennas

Taoglas

Taoglas is the world’s leading provider of next-generation IoT solutions, combining the latest in high-performance RF antenna with advanced positioning, imaging, audio and artificial intelligence technologies for companies with unique IoT challenges.

Read more
Taoglas Logo

Documents

  • Taoglas TS894113 antenna Datasheet
