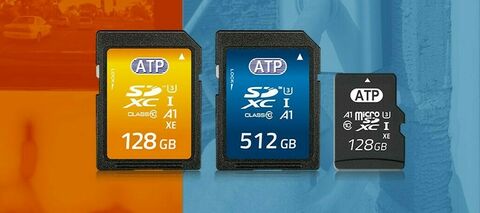

512 GB max capacity SD/microSD memory cards for AI-driven Video applications

05/04/2024

The S650Si (TLC) and S750Pi (pSLC) Series SD and microSD memory cards built with 176-layer 3D NAND technology and low-density parity check (LDPC) controller.

With expanded capacity offerings up to 512 GB and 5-year extended supply longevity support, the new memory cards are targeted for growing segments spurred by 5G, artificial intelligence (AI), and edge technologies, such as AI-enabled surveillance, smart homes, mobile monitoring, automotive recorders, remote healthcare, and security surveillance systems requiring heavy write and re-write usage.

Main Features

SDHC / SDXC

SDXC

microSDHC / microSDXC

microSDXC

Product Line

Premium

Superior

Premium

Superior

S750Pi / S750Pc

S650Si / S650Sc

S750Pi / S750Pc

S650Si / S650Sc

Interface

UHS-I

UHS-I

UHS-I

UHS-I

Flash Type

3D TLC
(pSLC mode)

3D TLC

3D TLC
(pSLC mode)

3D TLC

Form Factor

SD Card

microSD Card

Operating Temperature

-40°C to 85°C /
-25°C to 85°C

-40°C to 85°C / -25°C to 85°C

-40°C to 85°C / -25°C to 85°C

-40°C to 85°C / -25°C to 85°C

Power Loss Protection Options

Firmware Based

Firmware Based

Firmware Based

Firmware Based

Capacity

16GB to 128GB

64GB to 512GB

16GB to 128GB

64GB to 512GB

Performance

Sequential Read (MB/s) up to

95

95

95

95

Sequential Write (MB/s) up to

80

80

80

80

Endurance and Reliability

Endurance (TBW)1 up to

12,670

2,000

12,670

2,000

Reliability
MTBF @ 25°C

>3,000,000 hours

>2,000,000 hours

>3,000,000 hours

>2,000,000 hours

Reliability
Number of Insertions

20,000 (SDA spec minimum 10,000)

20,000 (SDA spec minimum 10,000)

20,000 (SDA spec minimum 10,000)

20,000 (SDA spec minimum 10,000)

Others

Dimensions

32.0 x 24.0 x 2.1

32.0 x 24.0 x 2.1

15.0 x 11.0 x 1.0

15.0 x 11.0 x 1.0

Certifications

CE, FCC, UKCA, RoHS

CE, FCC, UKCA, RoHS

CE, FCC, UKCA, RoHS

CE, FCC, UKCA, RoHS

Warranty

5 years

2 years

5 years

2 years

1 Under highest Sequential write value. May vary by density, configuration and applications.



Tech question
Atp

512 GB max capacity SD/microSD memory cards for AI-driven Video applications

  • Features
  • Applications
  • Technologies
  • Manufacturer

SD/SDHC/SDXC Card Key Features

  • SD Life Monitor
  • Dynamic Data Refresh
  • Power failure protection
  • Industrial temperature
  • 100% MP Level Test

microSD/microSDHC/microSDXC Card Key Features

  • SD Life Monitor
  • Dynamic Data Refresh
  • Power failure protection
  • Industrial temperature
  • 100% MP Level Test
