5.4V to 28V, 5A, H-Bridge Motor Driver

02/04/2021

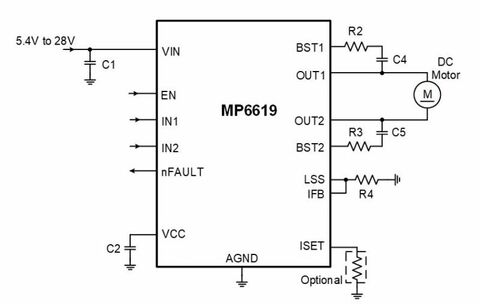

The MP6619 is an H-bridge motor driver that operates from a supply voltage up to 28V and delivers a motor current up to 5A. The MP6619 is ideally suited to drive a brushed DC motor.

The MP6619 also has cycle-by-cycle current limiting. Full protection features include over-current protection (OCP), input over-voltage protection (OVP), under-voltage lockout (UVLO), and thermal shutdown. The MP6619 is available in a QFN-19 (3mmx3mm) package.

Documents Tech question
MPS MP6619

5.4V to 28V, 5A, H-Bridge Motor Driver

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features & Benefits:

  • Wide 5.4V to 28V Operating Input Range
  • Up to 5A Peak Output Current
  • Internal H-Bridge Driver
  • Cycle-by-Cycle Current Limiting
  • 65mΩ RDS(ON) for Each Half-Bridge MOSFET
  • 100% Duty Cycle Operation of H-Bridge
  • 1μA Shutdown Mode
  • Output Short-Circuit Protection (SCP)
  • Input Over-Voltage Protection (OVP)
  • Under-Voltage Lockout (UVLO)
  • Over-Temperature Shutdown
  • Fault Indication Output
  • Available in a QFN-19 (3mmx3mm) Package

Applications & Markets

  • 11 Motor Control

    Motor Control

Technologies

  • 48 shutterstock 1642185091

    Motion/motor control

Monolithic Power Systems

Monolithic Power Systems provides small, highly energy efficient, easy-to-use power solutions for systems found in industrial applications, telecom infrastructures, cloud computing, automotive, and consumer applications.

Read more
Monolithic Power Systems Logo

Documents

  • MPS MP6619 At a Glance
