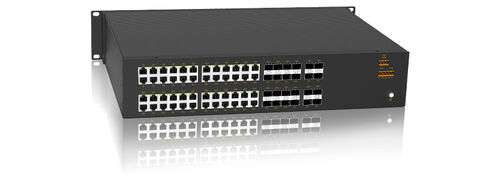

48G+4*10G port layer 3 managed rack mountable switches

03/03/2023

SICOM6448G is a layer 3 managed industrial Ethernet switch designed to operate reliably in electrically harsh and climatically demanding industrial environments. SICOM6448G supports up to four 10 gigabit ports, 48 gigabit RJ45 ports or 16 gigabit RJ45 ports and 32 gigabit SFP ports. SICOM6448G is a 19-inch rack mountable device and its combo ports design offers the maximum flexibility for easy expansion.SICOM6448G supports many Layer 2 software features such as port, VLAN, multicast, QoS, fast redundant ring and Layer 3 functions such as RIP, OSFP, PIM-SM, PIM-DM. It supports Console, Telnet, Web management and network management software based on SNMP. At present, the product is widely used at the backbone networks in many industrial communication systems.

Main Features

  • Supports combo gigabit ports with option of 1000 Base-T(X) RJ45 or 1000 Base-X Fiber
  • Support Max four 10 gigabit ports, 48 gigabit RJ45 ports or 16 gigabit RJ45 ports and 32 gigabit SFP ports
  • Supports DT-Ring ,STP/RSTP/MSTP and VRRP for network redundancy
  • Supports Layer 3 Static routing and routing protocols such as RIP v1/v2 and OSPF
  • Supports Qos,VLAN, SNMP v1/v2/v3, RMON(1,2,3,9 Group)
  • Supports SFP Digital Diagnostics Monitoring
  • IP40 protection class
Documents Tech question
Kyland SICOM6448 G

48G+4*10G port layer 3 managed rack mountable switches
