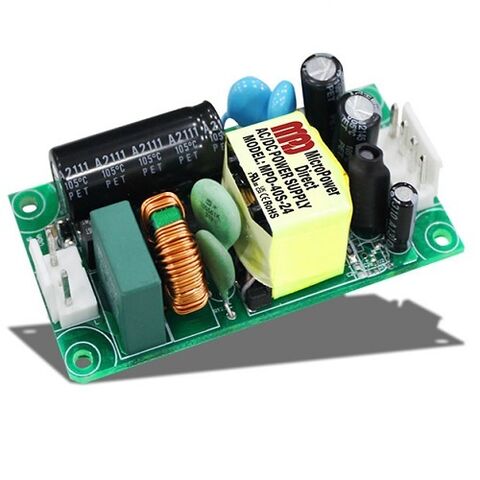

40W open frame AC/DC converter

15/11/2024

The MPO-40S series is designed to ensure operational stability and safety with built-in protection features such as overload, short-circuit, overvoltage, and undervoltage protection. The converters also offer high efficiency, reaching up to 92%, which ensures energy conservation and lower heat dissipation during use. The series operates over a wide temperature range of -40°C to +80°C. Designed for robust performance, these converters are housed in a standard 2″ x 1″ shielded metal case, which provides both electromagnetic interference (EMI) shielding and mechanical protection. The MPO-40S series is compliant with EN 55032 Class A for EMI.

The series is available with several output voltage options, including 3.3V, 5V, 12V, 15V, and 24V.

Main Features

  • 40W Output Power
  • >330 kHour MTBF
  • 3,000 VAC Isolation
  • Efficiency up to 90
  • IEC62368, UL62368 Approved
  • Compact 3 x 1.5 x 087 size
  • – 40°C to +80°C Operation
  • Meets 60068 Shock and Vibe
  • Meets EN 55032 B
Documents Tech question
MPD MPO 40 S

40W open frame AC/DC converter

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 1026772606

    AC/DC power supplies

MPD

MicroPower Direct ( MPD ) growth is driven by a commitment to delivering innovative, high quality power conversion products at the lowest possible prices.

Read more
Micropower Direct Logo

Documents

  • MPD MPO 40 S Datasheet
