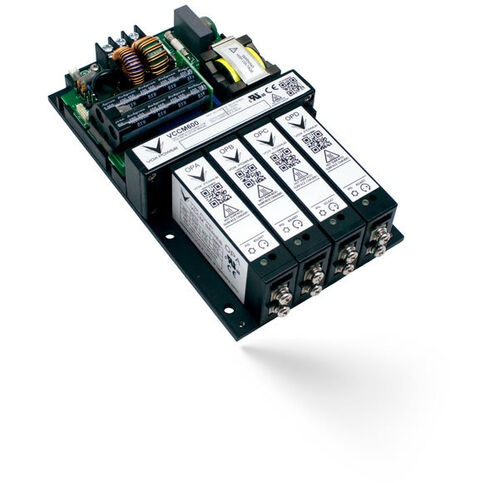

4” x 7” Fan-less 600W Modular Power Series

13/05/2022

The VCCM600 combines the advantages of a modular and configurable power supply with the high reliability of a fan-less architecture. The power supply unit delivers a silent 600 Watts and up to 750 Watts of peak power for 5 seconds in a rugged 4” x 7” x 1.61″ package and is the ultimate power solution for demanding Medical & Industrial applications where reliability or audible noise are of concern.

Depending on your application, the VCCM600 could be configured as a conduction, convection or forced air cooled solution. This flexibility allows the unit to be seamlessly integrated across a vast range of applications, making it perfect for standardising your power platform. The unique design approach and heat dissipation techniques allow the unit to be mounted in virtually any orientation giving system designers even more flexibility.

The series is suitable for applications ranging from the most controlled environments to the harshest conditions. Each configured solution can accommodate up to 4 isolated DC output modules and each module utilises 100% SMT components to ensure reliability.

Main Features

  • 600 Watts conduction cooled rating
  • 750 Watts peak rating (5 seconds)
  • Standby power ≤ 1Watts (In primary inhibit mode)
  • Efficiency up to 92%
  • Unique module design (100% SMT)
  • Up to 4 isolated outputs at 150 Watts per channel
  • Wide output adjust range
  • Voltage and current dynamically controllable
  • 5V/1A bias supply
  • Series and paralleling of outputs
  • Programmable start-up state (laser applications)
  • 5 year warranty
  • Approved to latest safety standards:
  • IEC/UL60950 2nd Edition,
  • IEC/UL62368-1 2nd Edition,
  • IEC/UL60601-1 3rd Edition and
  • IEC/UL60601-1-2 4th Edition (EMC)
Documents Tech question
Vox Power VCCM600 S

4” x 7” Fan-less 600W Modular Power Series

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1026772606

    AC/DC power supplies

Vox Power

Vox Power designs innovative modular configurable power supplies and provides state-of-the- art conduction, convection or forced air cooled solutions for industrial and medical markets.

Read more
Vox Power Logo

Documents

  • Vox Power VCCM600 S Industrial Datasheet
  • Vox Power VCCM600 M Medical Datasheet
