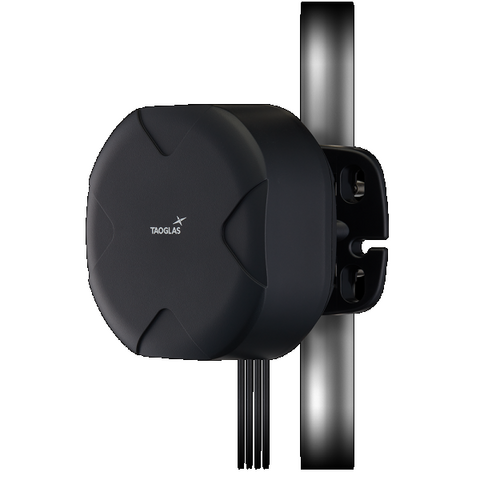

4 x 5G/4G LTE MIMO Cross-Polarized Antenna with Multi Mount Bracket

12/11/2021

Introducing the Taoglas TGX.04 - a 4* 5G/4G MIMO cross-polarized omnidirectional dipole antenna with a wide bandwidth covering all worldwide sub 6GHz cellular bands from 400 to 6000MHz. It uses four dipole antennas to deliver the best possible throughput and quality improvements in transmitting and receive signal levels, leading to better coverage and performance, especially in urban environments. It's designed for multiple mounting options to allow for a variety of use cases and is supplied with 3m of low loss cable with SMA(M) connectors as standard.

Main Features

  • Highest efficiency for 450-6000MHz wideband applications
  • Fully 5G/4G Cellular Operational
  • Cross Polarized Dipole Antennas
  • IP67 Rated Enclosure
  • Omnidirectional Gain Patterns leading to better coverage
  • Multi-function bracket including Wall, Pole and Glass Mount options
  • Cable: 3m TGC-200 as standard but fully customizable
  • Connector: SMA Male Straight as standard but fully customizable
  • Dimensions: 165 * 165 * 149 mm(Including Bracket)
  • RoHS & Reach Compliant
