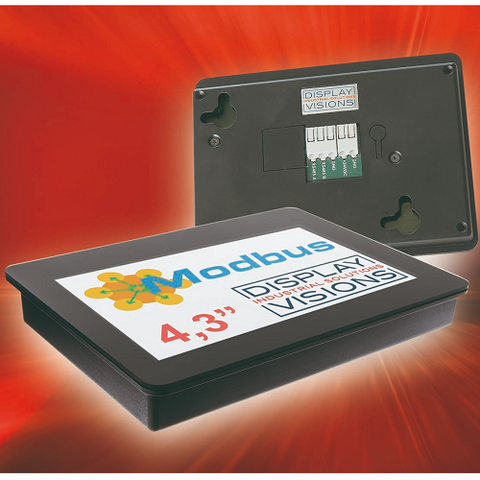

4.3" Modbus TCP/RTU display with touch panel

26/04/2024

Ready-to-use display (slave): brilliant, bright and with touch panel. With free WYSIWYG tool "HMI Designer" to create your individual screen pages via drag and drop. Link the corresponding Modbus registers with the various objects on the display and automatically receive the correct data on display.

  • 4.3" with touch (7" in preparation)
  • Modbus RTU/TCP
  • RS-485, LAN, WiFi
  • Brilliant 1,000 cd/m²
  • without Modbus: USB, RS-232, SPI and I²C

Main Features

  • Brilliant color display with typ. 1,000 cd/m²
  • Touch panel included
  • Wide viewing angle with ±170°
  • Modbus RTU and TCP
  • Free definable display content: text, pictures, value, bargraph, instrument...
  • Supports up to 256 modbus register
  • Many interface options, RS485, LAN, WiFi, Modbus....
  • Wide power supply range 5V..30V=
  • Wall mount and panel mount
  • More sizes are under development
  • Quick and easy cable commissioning thanks to tool-free push-in connection technology
Documents Tech question
Display vision Modbus

4.3" Modbus TCP/RTU display with touch panel

  • Technologies
  • Manufacturer
  • Documents

Technologies

  • 65 rocktouch

    TFT-LCD displays

Display Visions

Display Visions (previously Electronic Assembly) markets a broad spectrum of top-quality industrial displays to customers in a number of industries ranging from process automation and machinery manufacturing to IT.

Read more
Display Visions Logo vroeger Electronic Assembly

Documents

  • Display Vision EA HMI Series Hardware productoverview
