4.3” high resolution iSmart TFT module

17/03/2023

The module will have an 800x480 pixel resolution full colour TFT panel whereas the conventional 4.3” module has 480x272 pixels. Higher resolution allows more flexible graphic capability and sophisticated image expression. Available with or without Resistive/capacitive touch.

This module includes an 800x480 pixel TFT panel mounted on a printed circuit board with low profile construction. Each pixel has red, green and blue striped elements with 24 bit colour control and 8 bit alpha blending. The CPU block consists of a powerful 450MHz i.MX28 processor with up to 512M bytes of DDR2 RAM and the option to boot from SDHC card or internal eMMC NAND. A parallel μSDHC slot provides external SDHC module interface. The eMMC NAND also provides non-volatile storage for user application variables. The module has a simple Ethernet connection to the Web. The Ethernet port can be directly wired to an RJ45 plug to provide FTP network communications over the local network and internet.

  • TW800X480B-K619SE4R2NU (Non touch)
  • TW800X480B-K619SE4R2RU (Resistive touch)
  • TW800X480B-K619SE4R2MU (Capacitive touch)

Main Features

  • Powerful enough to devolve Host functionality
  • High Pixel Density 4.3” IPS
  • Cost Effective
  • TU / iDevOS compatible
Documents Tech question

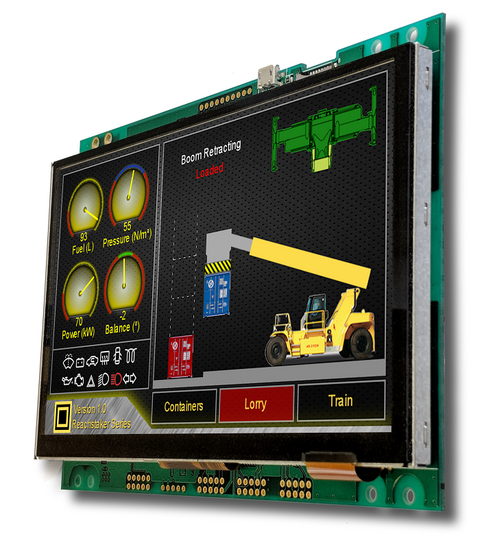

Noritake itron TW800x4808

4.3” high resolution iSmart TFT module

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 18 Traffic Transportation

    Traffic & Transportation

Technologies

  • 65 rocktouch

    TFT-LCD displays

Noritake

Noritake Itron developed the first VFD, Vacuum Fluorescent Display technology as member of the Noritake group which specializes in ceramic based products.

Read more
Noritake Logo

Documents

  • Noritake TW800 X480 B K619 SE4 R2 MU Datasheet
  • Noritake TW800 X480 B K619 SE4 R2 RU Datasheet
  • Noritake TW800 X480 B K619 SE4 R2 NU Datasheet
