3W Isolated DC-DC Converter with EN 50155 Railway Certification

22/03/2024

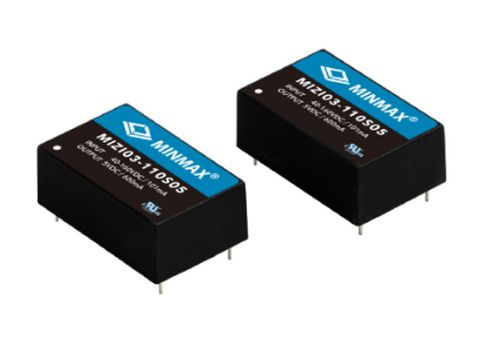

The MIZI03 series is a railway-certified 3W isolated DC-DC converter meets railway certification standards EN50155 and EN 45545-2. The MIZI03 series features a 3000VAC high isolation voltage and a reinforced insulation system, designed to prevent damage to the backend system and mitigate the risk of injury to operators.

Main Features

  • Industrial Standard DIP-24 Package
  • Ultra-wide Input Ranges 9-36VDC, 18-75VDC, 40-160VDC
  • I/O Isolation 3000VAC with Reinforced Insulation
  • Operating Ambient Temp. Range -40℃ to +92℃
  • No Min. Load Requirement
  • Under-Voltage, Overload and Short Circuit Protection
  • EMI Emission EN 55032/11 Class A Approved
  • Vibration and Shock/Bump Test EN 61373 Approved
  • Cooling, Dry & Damp Heat Test IEC/EN 60068-2-1, 2, 30 Approved
  • Railway EMC Standard EN 50121-3-2 Approved
  • Railway Certified EN 50155 (IEC60571) Approved
  • Fire Protection Test EN 45545-2 Approved
  • UL/cUL/IEC/EN 62368(60950-1) Safety Approval & CE Marking
