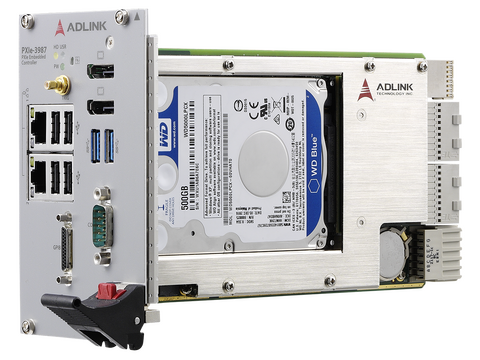

The ADLINK PXIe-3987 PXI Express embedded controller, based on the 7th gen Intel® Core™ i7 processor, is specifically designed for hybrid PXI Express-based testing systems, delivering maximum computing power for a wide variety of testing and measurement applications.
Combining state-of-the-art 7th Generation Intel® Core™ i7 processor and up to 32 GB of 2400 MHz DDR4 memory, the PXIe-3987 utilizes separate computing engines on a single processor, enabling execution of numerous independent tasks simultaneously in a multi-tasking environment. With a auto configure PCIe switch, the PXIe-3987 can support four links x4 or two links x16 and x8 PXI Express link capability, with maximum system throughput up to 16 GB/s by PCI Express 3.0 bus.
The ADLINK PXIe-3987 provides ample interface flexibility, including two DisplayPort connectors, allowing connection to two monitors, dual USB 3.0 connections for high speed peripheral devices, dual Gigabit Ethernet ports, with one for LAN connection and the other for controlling LXI instruments, four USB 2.0 ports for peripheral devices and USB instrument control, and a Micro-D GPIB connector for GPIB instrument connection, for hybrid PXI-based testing systems control.
Adlink's mission is to affect positive change in society and industry by connecting people, places and assets with artificial intelligence; we do this through the delivery of leading edge, robust and reliable hardware and software solutions that directly address mission-critical business and technology challenges.
