32-axis PCIe Ethercat master motion controller

14/05/2020

ADLINK PCIe-8334 is a hardware-based EtherCAT motion controller able to support up to 32 synchronized axes and over 10,000 points simultaneously. The PCIe-8332 features dedicated isolated emergency stop input (EMG), and configurable isolated high-speed digital input as not only generic sensor input but also pulsar input, with up to 1MHz input frequency. Optimum jitter control is provided in minimal cycles of 250µs to optimize synchronous I/O performance for vertical automation applications in semiconductor, electronic manufacturing, and others. The PCIe-8334 provides an out-of-shell application-ready (APS) function library to generate multi-dimensional, highly synchronized, time-deterministic event-triggered motion & I/O control. A wide range of compatible 3rd party slaves are easily designed with ADLINK’s APS function library. ADLINK’s MotionCreatorPro 2 utility is fully compliant with the Microsoft Windows environment, that allows complete EtherCAT motion and I/O configuration and function evaluation as well as compiling program download functions.

Documents Tech question

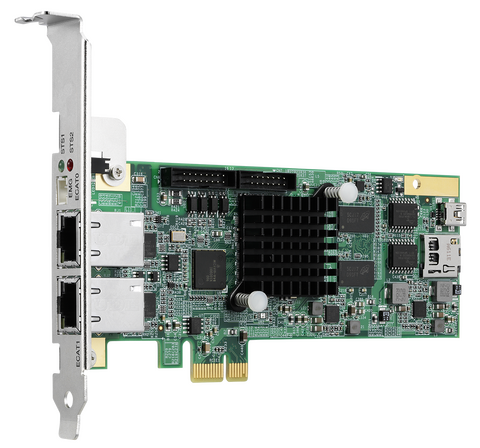

PC Ie 8338 Product Image en 20170407 v1

32-axis PCIe Ethercat master motion controller

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
  • PCI Express® x 1 compliant
  • Up to 32-axis motion control & 10,000 I/O point control
  • EtherCAT cycle times up to 250μs
  • Broad range of compatible EtherCAT slaves
  • Dedicated emergency stop input
  • 4CH isolated digital input/4CH isolated digital output
  • 1CH pulsar input
  • Point-table functions for contouring application

Applications & Markets

  • 11 Motor Control

    Motor Control

Technologies

  • 48 shutterstock 1642185091

    Motion/motor control

Adlink

Adlink's mission is to affect positive change in society and industry by connecting people, places and assets with artificial intelligence; we do this through the delivery of leading edge, robust and reliable hardware and software solutions that directly address mission-critical business and technology challenges.

Read more
Adlink Logo

Documents

  • PCIe-8332-8334-8338
