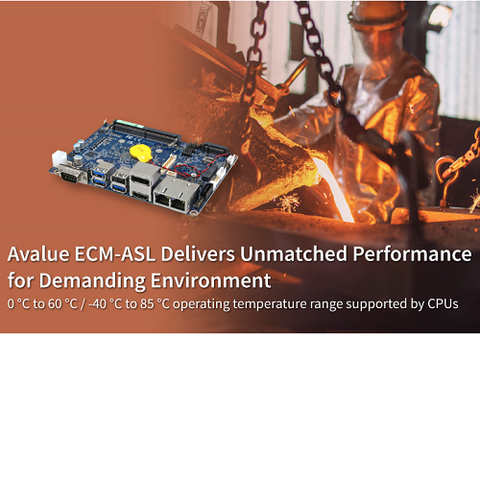

3.5” SBC Delivers Unmatched Performance for Demanding Environment

26/04/2024

The ECM-ASL, with Intel® CPU bottom mounted, is the successor of ECM-EHL. It delivers enhanced CPU and GPU performance, introducing up to 8 Gracemont cores, and a scalable range from 2 to 8 cores to address a variety of industrial demands. ECM-ASL provides significant enhancements in processing power and AI capabilities tailored for industrial and communication sectors, featuring a rugged design to conquer even the most challenging environments.

ECM-ASL succeeds where others fail. This micro module motherboard not only integrates 16~32 GPU EU architecture, substantially amplifying CPU and GPU capabilities, but also supports a staggering 0°C to 60°C operating temperature range, or an even more extreme -40°C to 85°C range depending on the selected CPU configuration, making it ideal for use in scorching deserts, freezing industrial freezers, or anywhere in between. In addition, ECM-ASL accepts a wide input voltage range of 9VDC to 36VDC, ensuring uninterrupted operation in areas with unstable or unreliable power sources. This feature makes it perfect for applications that suffer from power fluctuations or rely on generators.

Main Features

  • Onboard Intel® Processor N97, and Intel® Core™ i3-N305 Processor, Intel Atom® x7000RE series processors
  • 1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max
  • Triple display (HDMI, DP, LVDS/eDP)
  • Storage: 1 x M.2 Key B, 1 x SATA III
  • Expansion: 1 x M.2 Key B, 1 x M.2 Key E
  • Ethernet: 2 x Intel® I226V for standard temperature or 2 x Intel® I226IT for extended temperature
  • I/O: 3 x USB 3.2 Gen 2, 3 x USB 2.0, 1 x RS-232/422/485, 3 x RS232, 1 x SATA III, 1 x 8 bit GPIO
  • TPM 2.0
  • 0~60°C/-40~85°C working temperature support by CPU skus
