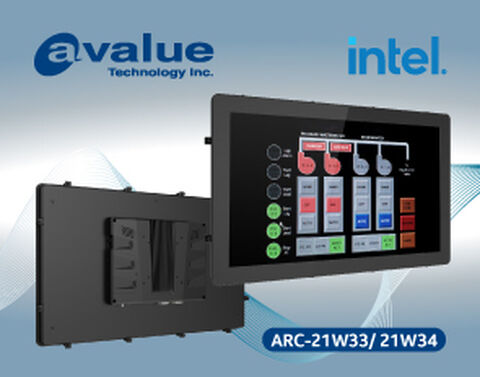

21.5”with Full-HD PCAP Multi-touch Intel® Celeron® J3455 Rugged Touch Panel PC with IET Expansion

05/03/2021

Designed to be waterproof, dustproof, shockproof and scratchproof, Avalue ARC-series rugged touchscreen panel PCs are built to withstand harsh operating environments and suitable for most work settings, including information terminal, library navigation and automatic borrowing/lending/inquiry system, kiosk and factory automation.

With their wide operating temperature range and readability under sunlight, and coating technology for PCAP touchscreen, their ruggedness is best demonstrated in an outdoor setting. The ARC-21W33/ ARC-21W34 touchscreen PCs are the latest additions to the ARC series.

With larger screen size of 21.5-inch, the rugged panel PCs are built with either Intel® Celeron J3455 (ARC-21W33) or Intel®Core i5-7300U(ARC-21W34), and are protected by IP-65 rating in the front and IP-41 rating at the back of the PC, making them suitable for use in humid and dusty operating environments.

The ARC-21W33/ ARC-21W34’s wide temperature and pressure range reduces instability in voltage, and consequent system unavailability, due to rapid temperature changes. Easy-to-install fanless open-frame modular design also ensures stable operation in harsh environments.

Documents Tech question
Avalue ARC 2133 2134

21.5”with Full-HD PCAP Multi-touch Intel® Celeron® J3455 Rugged Touch Panel PC with IET Expansion

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

ARC-21W34

  • 21.5” Full HD LCD with PCAP Multi-Touch
  • Onboard Intel® Core™ i5-7300U SoC BGA Processor
  • 1 x 260-pin DDR4 SODIMM Socket, Supports Up to 16GB
  • DDR4 2133Mhz SDRAM
  • Rich I/Os, 2 LAN, 2 COM, 4 USB, SIM Card Slot, Swappable Drive Bay, Speaker out for Flexible Expansion Modules
  • 1 x Mini PCIe Slot
  • Rugged Design for Vibration & Shock Protection, Cableless Design
  • Fanless Operation from -10 ~ 50°C
  • Wide Range DC Power Input from +12~26Vdc
  • Service Window, Easy to Install Memory Module
  • Front panel: IP65, Rear: IP41(except I/O)
  • TPM2.0 (optional)


Features:

ARC-21W33

  • Onboard Intel® Celeron® J3455 SoC BGA Processor
  • 1 x 204-pin DDR3L SODIMM Socket, Supports Up to 8GB
  • DDR3L 1600MTs SDRAM
  • Wide Range DC Power Input from +9 ~ 36Vdc


Applications & Markets

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

  • Shutterstock 740406568

    Industrial PC & systems

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.

Read more
Avalue Logo

Documents

  • Avalue ARC 21 W34 Datasheet
  • Avalue ARC 21 W33 Datasheet
