2000W CRPS Module for Datacenter applications

26/11/2021

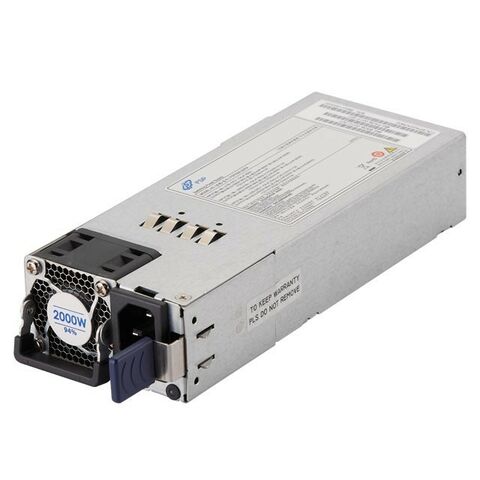

FSP2000-20HM is a redundant power supply module base on CRPS standard. The power supply comes to offer the total power capacity up to 2000 Watts, and provides PMbus features, which makes it be able to communicate with motherboard. In addition, the power supply is ideally the best choice for datacenter, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

FSP2000-20HM works with PMBus™ to communicate with system BMC(Board Management Controller). It can be part of the DCIM(Data Center Infrastructure Management that supports PSU monitoring and management. This supply supports cold redundancy, also known as Smart ON, which will maintain system power efficiency and availability with module power on and off through PMBus™. Therefore, the system administrator can configure the power redundancy according to different scenarios. The maximum redundancy is 3+1 in configuration that supports 6000W in total. It will satisfy most of market needs in data center.

Main Features

  • 80PLUS Certified Titanium Level Efficiency
  • Meet CRPS Standard
  • Support HVDC Input
  • Cold Redundancy
  • PMBus™ Compliant
  • High Density Design with 185mm in Depth
  • Low iTHD
  • Working temperature: 0 to 55°C
  • Design for 5,000 meters above sea level
  • Support OCP, OTP and OVP circuit protection
  • Short circuit protection on all outputs
  • Resettable power shut down
  • MTBF: 100K hours of continuous operation at 25°C, 100% output load
Documents Tech question
FSP FSP2000 20 HM

2000W CRPS Module for Datacenter applications

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 24 Telecom

    Wired data & telecom

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 162948803

    Power solutions >1000 W

FSP

FSP Group is the leading switching power supplier in the world. FSP Group produces large selections of products to serve its customers in LCD TV, LED Lighting, Medical, Industrial / Desktop computers and Servers.

Read more
FSP Logo

Documents

  • FSP FSP2000 20 HM Datasheet
