2-in-1 Stacked Card Connector

19/07/2024

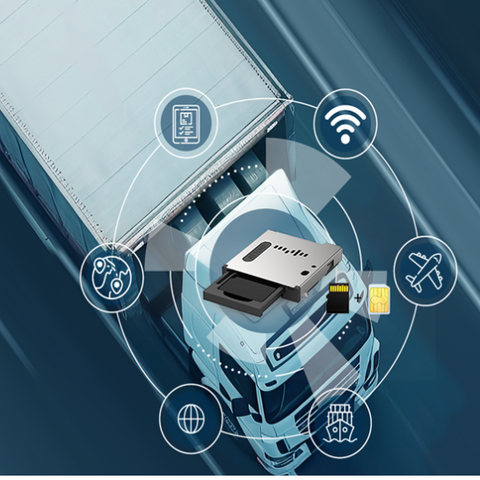

New 2-in-1 stacked card connector features a vertical stacking design, saving up to 50% PCB space compared to traditional dual-card connectors. It offers flexible configurations, including Micro SD and Nano SIM, Micro SD, and Micro SIM card options. Uniquely designed trays allow cards to be stacked vertically with customizable tray lengths, providing manufacturers with greater design flexibility. This connector is ideal for industrial automation, IoT deployments, and rugged portable equipment, delivering robust performance and versatile options for modern electronic devices.

Main Features

Tray push-push type: dual-stack card connector (tray is separated)
Vertical stacking design: Saves up to 50% PCB space
Support for multiple card types: Compatible with Micro SD, Nano-SIM, and Micro SIM cards
Integrated incorrect insertion prevention and tray detection: Ensures proper card insertion and detection
Robust tray lock function: Protects against shock and vibration
Extended ejection length: 6 mm ejection length for easy card removal
Adaptable design: 2 mm tray edge for flexible panel/casing integration
Durability tested: Withstands 5,000 mating cycles
Wide operating temperature range: From -40°C to +85°C
Compliance: Meets EN60721-3-5 Class 5M3 random vibration and Level II shock test standards
