2-cell 2A Boost charger with NVDC power path and integrated cell balancing

18/12/2020

The MP2672A is a Boost Charger for 2-cell Li-ion/Li-polymer batteries, with an NVDC system power path and integrated cell balancing. It offers both standalone mode and host-control mode (I2C).

It provides up to 14V of sustainable voltage, and up to 2A of programmable charge current for batteries with two cells in series. Robust protections include battery temperature monitoring, programmable charging safety timer protection, JEITA-compliant battery NTC monitoring, cell over-voltage protection (OVP), thermal regulation, and thermal shutdown. The device is available in a QFN-18 (2mmx3mm) package, and is designed for portable handheld solutions, point-of-sale (POS) machines, gimbals, Bluetooth speakers, e-cigarettes, and general 2-cell applications.

Documents Tech question

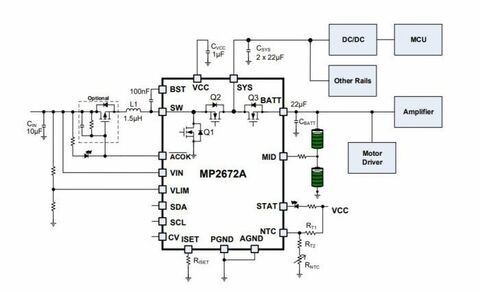

MPS2672a 1

2-cell 2A Boost charger with NVDC power path and integrated cell balancing

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
  • 4.0V to 5.75V Operating Input and 14V AMV.
  • Up to 2A Programmable Charging Current
  • Programmable Battery-Full Voltage from 8.2V to 8.9V with 0.5% Accuracy
  • Programmable Input Voltage Limit
  • Power Path Operation for Instant-On with Low Battery
  • JEITA Compliant Battery Temperature Monitoring for Increased Charging Safety
  • Integrated Cell-Balancing Circuit
  • Robust Safety Features, including Under-Voltage Lockout (UVLO) Protection, Battery Over-Voltage Protection (OVP), Watchdog Timer, and Thermal Regulation

Applications & Markets

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

  • 25 Mobile Wearables

    Mobile & Wearables

Technologies

  • Shutterstock 1668063934

    Battery chargers

Monolithic Power Systems

Monolithic Power Systems provides small, highly energy efficient, easy-to-use power solutions for systems found in industrial applications, telecom infrastructures, cloud computing, automotive, and consumer applications.

Read more
Monolithic Power Systems Logo

Documents

  • MPS MP2672 AGD Datasheet
