16V, 13A, Dual Output DC/DC Power Module

24/09/2021

The MPM3690-20 is a dual 13A output or single 26A output power module that offers a complete power solution, with excellent load and line regulation. The MPM3690-20 supports a 4V to 16V input voltage (VIN) range and a 0.6V to 3.3V output voltage (VOUT) range. The two output voltages can be set separately via a single resistor at each output.

Main Features

  • Dual 13A Output Power Module
  • 4V to 16V Input Voltage (VIN) Range
  • 3.2V to 16V VIN Range with External 3.3V VCC Bias
  • 0.6V to 3.3V Output Voltage (VOUT) Range
  • Multi-Phase Constant-On-Time (MCOT) Control for Ultra-Fast Transient Response
  • Adjustable Switching Frequency (fSW)
  • Adjustable Soft-Start Time (tSS)
  • Over-Current Protection (OCP)
  • Over-Voltage Protection (OVP)
  • Differential Remote Sense for Both Output Channels
  • Pin-Compatible with the MPM3690-30A/B and MPM3695-50A/B
  • Available in a BGA (16mmx16mmx5.18mm) Package
Documents Tech question

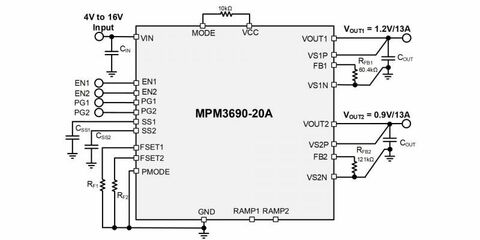

Mpm3690 20a tac

16V, 13A, Dual Output DC/DC Power Module

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 24 Telecom

    Wired data & telecom

  • 18 Traffic Transportation

    Traffic & Transportation

  • 13 AV Broadcast

    A/V & Broadcast

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1681440739

    Power management ICs

  • Shutterstock 2126267423

    Power semi & modules

Monolithic Power Systems

Monolithic Power Systems provides small, highly energy efficient, easy-to-use power solutions for systems found in industrial applications, telecom infrastructures, cloud computing, automotive, and consumer applications.

Read more
Monolithic Power Systems Logo

Documents

  • MPM3690 GBF 20 A
