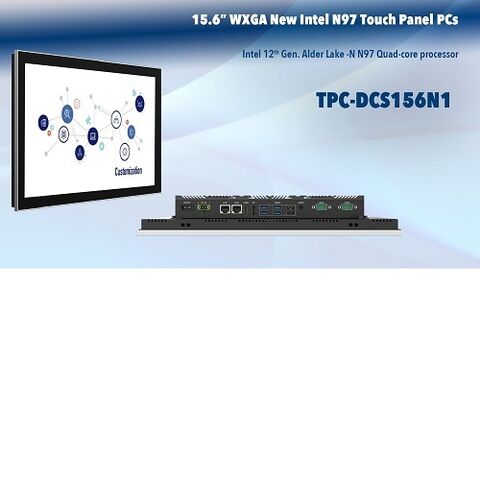

15.6" WXGA new Intel N97 touch panel PCs

08/11/2024

The TPC-DCS156N1 series is a newest low power, Fanless designed, widescreen 15.6-inch WXGA industrial Panel PC product. It adapts Intel 12th Gen. Alder Lake-N platform N97 4E-Core high performance processor. The TPC-DCS156N1 model design with rich IO interface, includes 2 GLAN, 4 USB3.0, 2 USB2.0, 2 COM, 1 HDMI, 1 DP, Audio. This slim touch Panel PC support 2 M.2 expansion slots support 3G/4G/5G, Wi-Fi/BT wireless functions. The design uses a multi-point (10- points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards.

The TPC-DCS156N1 designs with Intel PTT TPM2.0, uses full-sealed box construction, and its front IP65 rated protection can prevent dust from entering the device system, is compatible with WIN10, Win11, Linux OS and Ubuntu, and it also has a good compatibility with customized applications and software programs.

Main Features

  • Modular & Fanless designed, aluminum-magnesium alloy
  • Intel 12th Gen. Alder Lake-N series N97 processor, 4E-Core
  • Wide 15.6” TFT LCD Display, LED Backlit, WXGA 1366*768
  • Multi up to 10 points Pcap. touchscreen, EETI controller
  • DC 12V Power input, optional wide DC 9~36V input
  • I/O interfaces: 2 GbE, 6 USB, 2 COM, 1 HDMI, 1 DP, Audio
  • Intel PTT TPM2.0, Support Windows 11 OS
  • Panel mount, VESA 75/100 mount, Front IP65 rated protection
  • Optional 2 M.2 fast-speed expansion slots
Documents Tech question
Taicenn TPC DCS156 N1

15.6" WXGA new Intel N97 touch panel PCs

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

Taicenn

TAICENN, founded in Shenzhen, is a leading global provider and manufacturer of industrial panel PC, industrial display and industrial& embedded PC products, which are designed specifically for systems and applications that require excellent performance, high-level reliability and stability, long supply period and support.

Read more
Taicenn logo

Documents

  • Taicenn TPC DCS156 N1 EN V32 Datasheet
