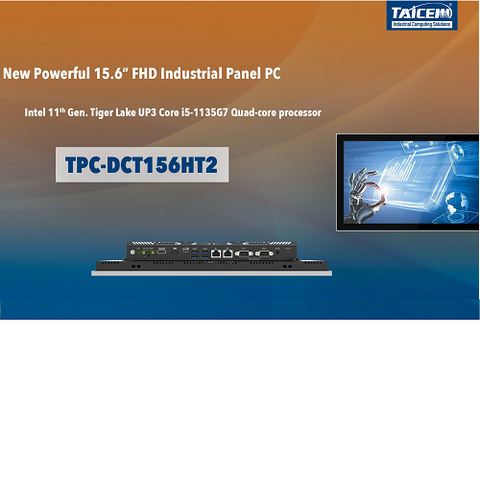

15.6" FHD Expandable Modular PanelPC

11/10/2024

The new panel PC TPC-DCT156HT is a ruggedized, fanless & cableless design with widescreen 15.6" FHD 1920*1080 LCD display that’s to provide the most stable and reliable product solution for industrial HMI applications. It is modular designed and manufactured by the standard Pcap. touch display modules and computer modules. The newest released Tiger Lake Panel PC TPC-DCT156HT is powered by Intel’s 11th Gen. Intel Tiger Lake UP3 SoC super high computing platform (Core i3-1115G4, Core i5-1155G7, Core i7-1165G7) processors for power-efficiency performance. The integrated Intel Iris Xe Graphics built with innovative GPU architecture are able to optimize image and video handling capabilities.

Main Features

  • Widescreen 15.6” TFT LCD display, LED Backlit, Full HD 1920 *1080
  • Intel 11th Gen. Tiger Lake UP3 Core i3/i5/i7 processors
  • 2* DDR4 memory, up to 64GB, 1* M.2 2280 (NGFF) storage
  • Multi-points (Max. up 10 points) Projective capacitive touch, EETI controller
  • Aluminum-magnesium alloy, anodized treatment, Modular designed
  • Wide DC 9~36V power input range
  • IO: 2*GLAN, 2*USB3.1, 2* USB3.0, 2*COM (DB9), 1*HDMI, 1*DP, Audio
  • 1* USB-Type C (USB3.1 & DP1.4a), 1* SW Remote Switch
  • Intel PTT TPM2.0, support Windows 11
  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection
Documents Tech question
Taicenn TPC DCT156 HT

15.6" FHD Expandable Modular PanelPC

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 17 Home Building Automation

    Home & Building Automation

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

Taicenn

TAICENN, founded in Shenzhen, is a leading global provider and manufacturer of industrial panel PC, industrial display and industrial& embedded PC products, which are designed specifically for systems and applications that require excellent performance, high-level reliability and stability, long supply period and support.

Read more
Taicenn logo

Documents

  • Taicenn TPC DCT156 HT EN V32 Datasheet
