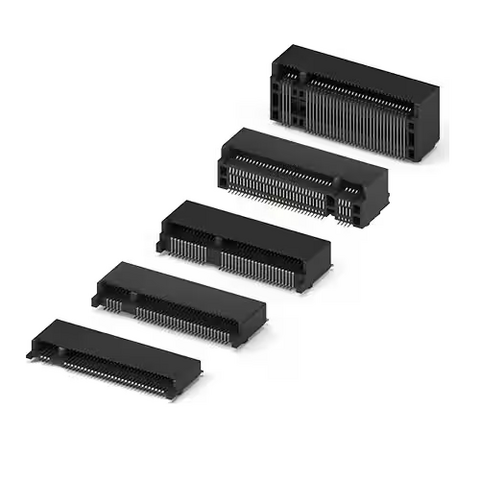

123A Series M.2 NGFF Connectors

26/05/2023

The M.2 NGFF connector supports diverse modules, including SSDs, Wi-Fi, GNSS, 5G, LTE, HSPA, and GSM. The M.2 NGFF connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications.

The one-action latch feature of the M.2 NGFF connector makes it easy to use and minimizes time and cost. This connector is the next evolution from mini and half-mini cards, providing optimal support for slender platforms. It can accommodate Wi-Fi, Bluetooth, wireless WAN, and SSD devices while boosting performance in terms of PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0.

Product Selector

Main Features

  • Height range: 2.1 mm to 8.5 mm
  • A, B, E, and M keying options for module cards
  • One-action latch for time and cost savings
  • PCI-SIG PCIe M.2 specification compliant
  • 0.5 mm pitch featuring sixty-seven contact points
