11ac 2T2R WIFI & BT PCIe M.2 Modules

08/10/2021

The Emwicon WMX6218/19 are higly integrated Dual-band WLAN + Bluetooth 5.0 Mini PCIe/M.2 modules designed base on Realtek RTL8822CE chipset. This module supports IEEE 802.11ac/a/b/g/n standards and provides a maximum PHY data rate up to 867 Mbps and supports 802.11ac MU-MIMO and 802.11n MIMO fo 2,4/5 GHz bands. It can offer feature-rich wireless connectivity and reliable throughput from extended distance. WMX6218 is designed by Mini PCIe form factor, the interface complies with PCI Express Base Specification Revision 2.1 and USB2.0 FS-mode for Bluetooth.

WMX6219 is designed by M.2 2230, the interface complies with PCI Express Base Specification Revision 2.1 and USB2.0 FS-mode for Bluetooth.

Main Features

WMX6218


Standard802.11ac/a/b/g/n + BT5.0
InterfacePCIe Half Mini Card
ChipsetRTL8822CE
Antenna2xU.FL connector, 2T2R
Temperature Range-40°C to +85°C
SupportWin10, Linux, Android
Certificationprescan pending


WM6219

Standard802.11ac/a/b/g/n + BT5.0
InterfacePCIe, M.2 2230 A+E Key
ChipsetRTL8822CE
Antenna2xMHF4 connector, 2T2R
Temperature Range-40°C to +85°C
SupportWin10, Linux, Android
CertificationCE, FCC, IC, Telec + 100 country certifications
Documents Tech question
Wmx6218 e35106ba

11ac 2T2R WIFI & BT PCIe M.2 Modules

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

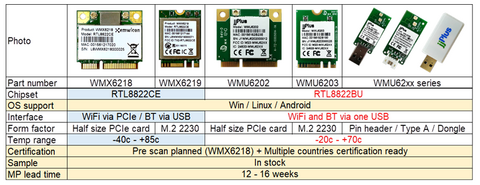

Schermafbeelding 2021 10 07 145345
