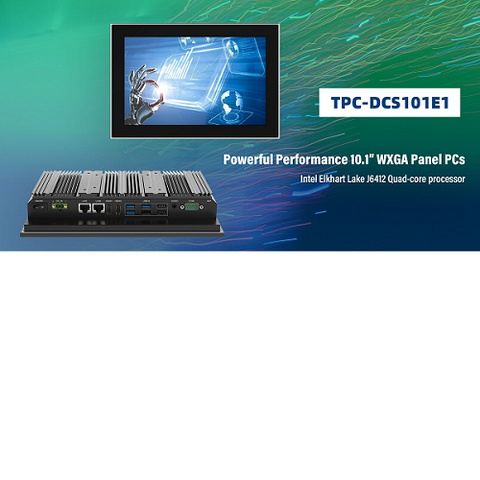

10.1-inch industrial Panel PC

24/05/2024

TPC-DCS101E1 series is a low power-consumption, Fan-less designed, enhanced stability and reliability industrial widescreen 10.1-inch industrial Panel PC product. It adapts Intel Elkhart lake J6412 high cost performance quad-core processor. TPC-DCS101E1 series storage can support 1x M.2 2280 NVMe PCIe SSD. The TPC-DCS101E1 model design with rich IO interface, includes 2 GLAN, 3 USB3.0, 3 USB2.0, 1 COM, 2 HDMI, Audio. This slim touch Panel PC support 1 Mini-PCIe expansion slot for 3G/4G/BT/Wi-Fi wireless, also 1 M.2 key B slot support 5G wireless functions. The design uses a multi-point (10- points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards.

Main Features

Widescreen 10.1” TFT LCD display, LED Backlit, WXGA 1280 *800
Intel Elkhart Lake Celeron J6412 processor, Quad-core 2.0Ghz
1* DDR4 memory, up to 32GB, 1* M.2 NVME 2280 storage
Multi-points (Max. up 10 points) Projective capacitive touch, EETI controller
Aluminum-magnesium alloy, anodized treatment, Modular designed
DC 12V power input, optional wide DC 9~36V input range
IO: 2*GLAN, 3*USB3.0, 3*USB2.0, 1*COM (DB9), 2*HDMI, Audio
Intel PTT TPM2.0, support Windows 11
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection
