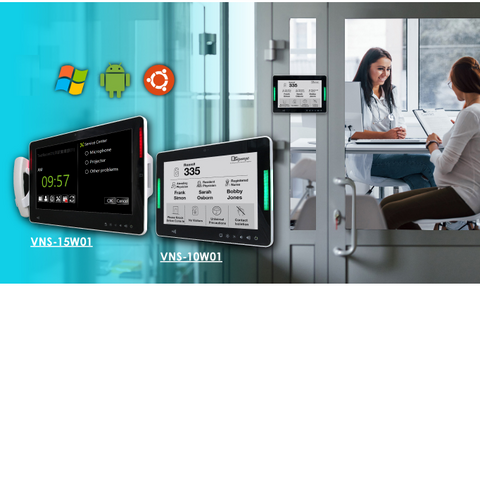

10.1" and 15.6" ultra slim touch Panel PC

29/09/2023

The multifunctional touch panel computers integrate system interface, transmission, storage, and communication functions.

Versatile applications from digital signage, interactive multi-media display to conference room management

  • Thin and light with an elegant design
  • Programmable LED indicator lights on both sides of the frame
  • Enable video communication at any time, guest ID verification, and data transmission with other NFC devices
  • Multi-touch projected capacitive (PCAP) touch technology for highly responsive sensing

With PID/RID, medical staff can update patient care plans, medical conditions, and other relevant details by integrating data with the hospital's HIS system, allowing them to simultaneously update information for multiple patients.

Main Features

VNS-10W01 : 10.1" ultra slim Panel PC

  • Intel® Atom™ x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
  • 2GB / 4GB RAM
  • 32GB / 64G eMMC
  • PCAP Touch
  • 10/100/1000 Ethernet (PXE Boot)
  • Touch button (Power/ Brightness/ Volume/ LED)
  • RS232 or RS422 or RS485
  • DC 12~24V Input or Powered LAN 802.3AT
  • NFC Reader
  • AMIC
  • 2.0MP Camera
  • Speak 4Ω 2.0W/2.5W(MAX)
  • LED Indicating Light Bar (Light color: Green and Red, Illuminating area: 70*8mm(front),70*5mm(side))
  • 75 x 75mm VESA Mount
  • Plastic has Antibacterial
  • Optional Handset

VNS-15W01: 15.6" Venus Panel PC

  • Intel® Atom™ x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
  • 2GB / 4GB RAM
  • 32GB / 64G eMMC
  • PCAP Touch
  • 10/100/1000 Ethernet (PXE Boot)
  • Touch button (Power/ Brightness/ Volume/ LED)
  • RS232 or RS422 or RS485
  • DC 12~24V Input or Powered LAN 802.3AT
  • NFC Reader
  • Smart Card Reader
  • AMIC
  • 2.0MP Camera
  • Speak 4Ω 2.0W/2.5W(MAX)
  • LED Indicating Light Bar (Light color: Green and Red,
  • Illuminating area: 70*8mm(front),70*5mm(side))
  • LED reading light
  • 75 x 75mm VESA Mount
  • Plastic has Antibacterial
  • Optional Handset
Documents Tech question
Avalue VNS 15w01 10 W01

10.1" and 15.6" ultra slim touch Panel PC

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

  • 17 Home Building Automation

    Home & Building Automation

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.

Read more
Avalue Logo

Documents

  • Avalue VNS 10 W01 Datasheet
  • Avalue VNS 15 W01 Datasheet
