0.8mm SMT connector series for high data transfer speeds up to 16+ Gbps

04/04/2025

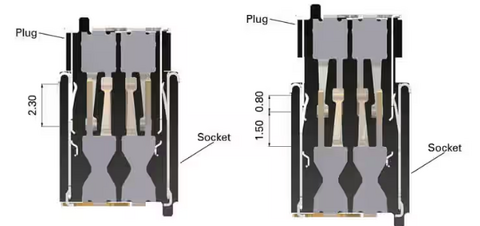

The 𝗭𝗲𝗿𝗼𝟴 𝗰𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿 𝘀𝗲𝗿𝗶𝗲𝘀 offers a rugged solution that sustains 𝗵𝗶𝗴𝗵 𝗱𝗮𝘁𝗮 𝘁𝗿𝗮𝗻𝘀𝗳𝗲𝗿 𝘀𝗽𝗲𝗲𝗱𝘀 𝗼𝗳 𝟭𝟲+ 𝗚𝗯𝗽𝘀, allowing for rapid sensor responsiveness even in harsh environments. These 0.8 mm SMT connectors contain 𝗦𝗰𝗮𝗹𝗲𝗫 technology, a gender-neutral contacting technology with a blade and spring on both sides of the connector pair. This contact configuration enables 𝗱𝘂𝗮𝗹-𝘀𝗶𝗱𝗲𝗱 𝗰𝗼𝗻𝗻𝗲𝗰𝘁𝗶𝗼𝗻𝘀 𝗼𝗻 𝗮 𝘀𝗶𝗻𝗴𝗹𝗲 𝗽𝗶𝗻, providing high redundancy and optimal contact reliability through vibration, temperature fluctuation, shock and corrosion. Variations of the Zero8 include 12 to 80 contacts, right-angled or straight configurations, BTB stack heights ranging from 6 to 21 mm, and optional EMI shielding.

Scale X Double-Sided Contracting System:

  • Withstands vibration, temperature fluctuations, shock, corrosion
  • Robust contacting with high-speed performance of 16+ Gbps
  • Ensures rapid sensor responsiveness despite environmental challenges
Documents Tech question
Schermafbeelding 2025 04 03 121601

0.8mm SMT connector series for high data transfer speeds up to 16+ Gbps

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
Schermafbeelding 2025 04 03 131336

Applications & Markets

  • 13 AV Broadcast

    A/V & Broadcast

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 6 Wireless Communication

    RF & Wireless communication

  • 24 Telecom

    Wired data & telecom

Technologies

  • Shutterstock 1822775435

    Connectors

EPT

EPT is a specialized connector manufacturer providing products to the Telecom, Automotive and Industrial electronic marketplace.

Read more
EPT Logo

Documents

  • Ept Zero8
